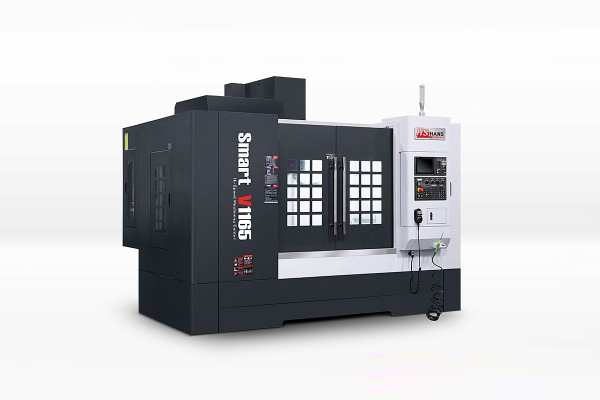

HS-V1165
| Description | Unit | Data | |
| Table | Table Size | mm | 1,200x660 |
| Load Max | kg | 1000 | |
| T-Slot | mm | 5-18-100 | |
| Travel | X/Y/Z | mm | 1,100x650x600 |
| Table-Sp | mm | 150-750 | |
| Sp-Colum | mm | 690 | |
| Spindle | Holder Type | - | BT40 |
| Motor | KW | 11 | |
| r.p.m | r/min | 12,000 | |
| Type | - | Direct Type | |
| Axis Type | X/Y/Z Guide | - | LM (ROLL TYPE) |
| X/Y/Z Axis | - | SCREW | |
| Accuracy | Positioning | mm | ±0.005/300 |
| Repeatability | mm | ±0.003/300 | |
| ATC | Tool Type | - | Arm |
| Tool Storage | EA | 24 / 30 (opt) | |
| Rapid | X/Y/Z Rapid | m/min | 40/40/40 |
| Max Cutting Feed | mm/min | 1-12,000 | |
| Size | Air pressure | Kg/㎠ | 6 |
| Power | KW | 25 | |
| Size | mm | 3,200x2,800x3,000 | |
| Weight | kg | 7800 | |
| Controller | - | FANUC | |
| Option | Tool length sensor | - | TS27R / RENISHAW |
| Function (FANUC) | - | AICC 200 BLOCK | |
| - | 256MB | ||
| Chip conveyer | - | - | |
| Mist collector | - | - |
